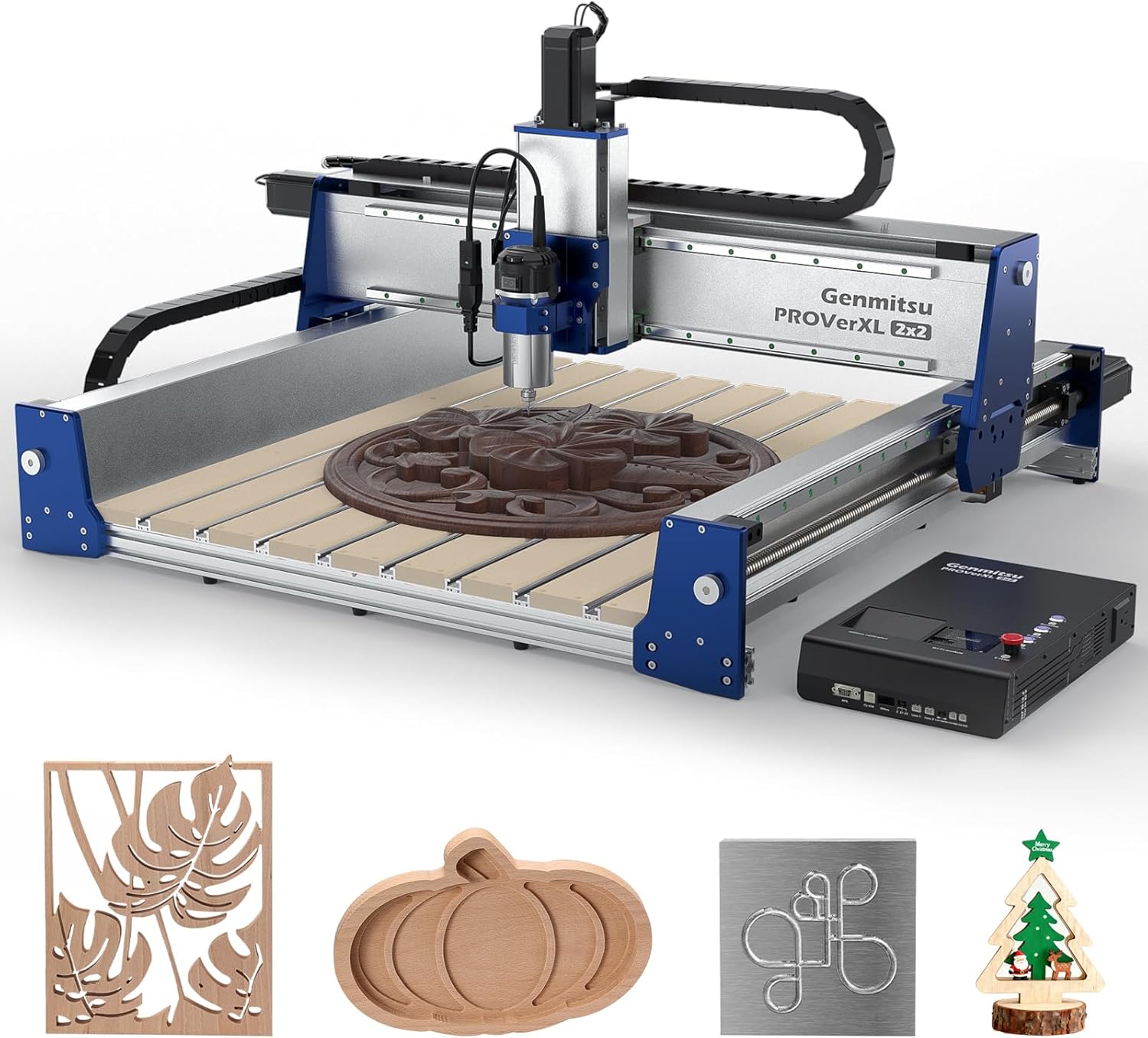

Genmitsu PROVerXL 2X2 Review: Pros & Cons Verdict

I had been running a small Genmitsu PROVerXL 2X2 review,Genmitsu PROVerXL 2X2 review and rating,is Genmitsu PROVerXL 2X2 worth buying,Genmitsu PROVerXL 2X2 review pros cons,Genmitsu PROVerXL 2X2 review honest opinion,Genmitsu PROVerXL 2X2 review verdict test for months on a hobby-grade 3018-style CNC router. It worked for earrings and small coasters, but the moment I tried to cut a full-size cabinet panel or a large sign, the tiny work envelope and flimsy belts turned every project into a fight with backlash and lost steps. I needed a machine that could handle 2×2-foot sheets without me having to re-zero the bit ten times per job. After spending a week reading forums, watching time-lapse builds, and comparing spec sheets, the Genmitsu PROVerXL 2X2 kept surfacing as the affordable middle ground between open-frame kits and the $4,000+ pro machines. It claimed a 26.76-inch square work area, closed-loop motors, and ball screws — all for $2,464. I bought it with my own money and have been running it daily for five weeks. This is what I actually found.

What I Knew Before Buying

What the Product Claims to Do

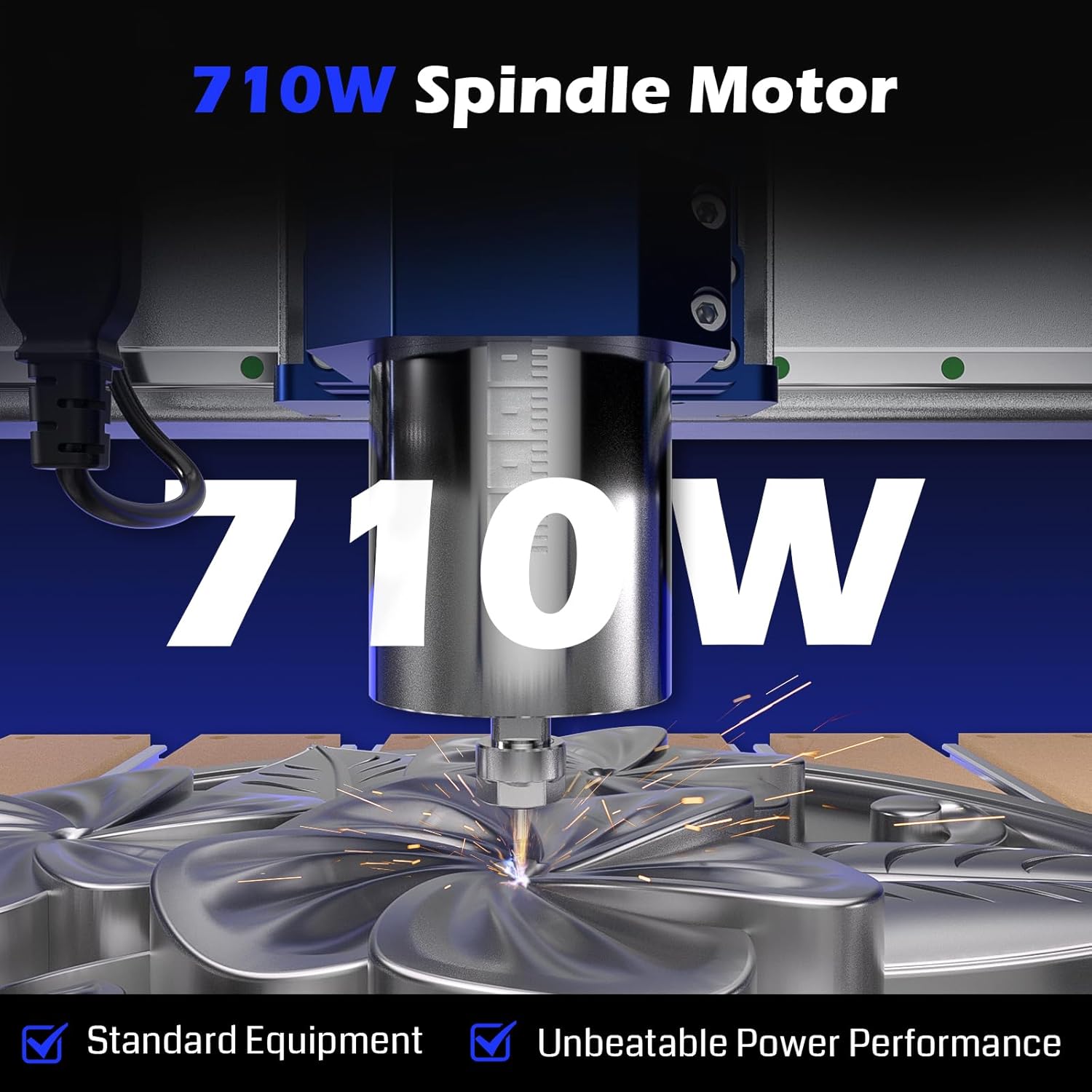

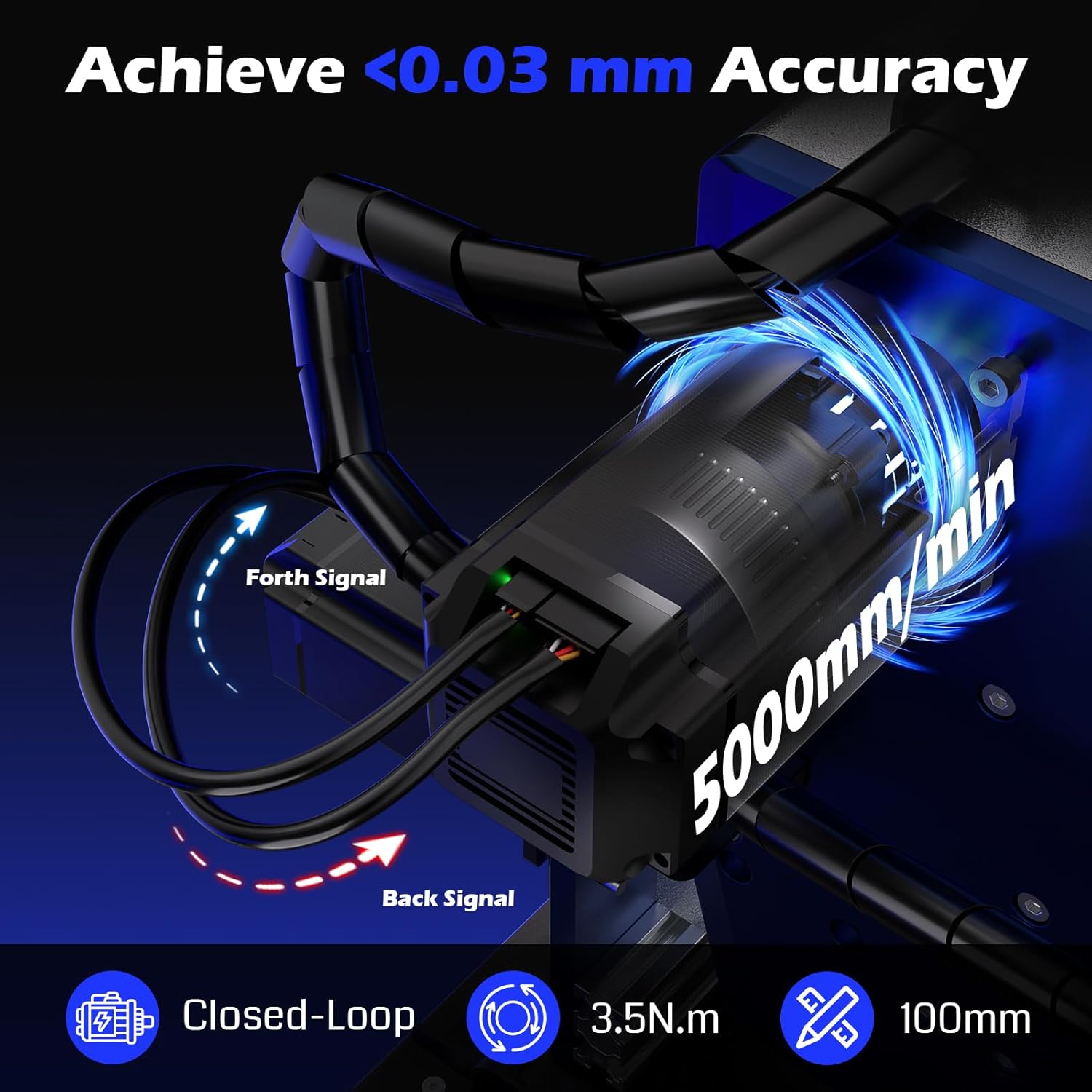

The product page promises a “massive 2×2 work area for professional-scale projects,” closed-loop steppers guaranteeing zero lost steps, <±0.03 mm accuracy with ±0.01 mm repeatability, and a 710W spindle that cuts wood and soft metals. It also highlights pre-assembled major components and a modular design for fast setup. Genmitsu specifically markets it as an upgrade path for people moving beyond 3018-sized machines. SainSmart’s official product page has decent photos and a spec table, but the claim that it “works like a 4×4” sounded like marketing fluff — how could a 2×2 machine with a 4.44-inch Z-axis replace a 4×4? I went in skeptical that the work envelope was truly usable edge-to-edge.

What Other Reviewers Were Saying

Across forum posts and a handful of early-adopter YouTube builds, the consensus was that the PROVerXL 2X2 punches above its price for rigidity but has a stingy Z-axis height. Several users on CNC forums praised the closed-loop system for eliminating missed steps on deep passes in oak. A few complained that the included documentation skips critical steps like tramming the spindle to the bed. The Amazon rating was 3.9 stars from only 8 reviews at purchase time, which made me cautious, but the mention of “no backlash” and “sturdy frame” outweighed the lower review count.

Why I Still Decided to Buy It

My shortlist came down to the Genmitsu PROVerXL 2X2 review and rating led me to believe this was the most rigid 2×2 at the price point. The Shapeoko 5 Pro was tempting but starts at $3,400. The Onefinity Elite Foreman is $3,000 with a smaller work area unless you buy the expansion kit. I specifically needed closed-loop motors because I cut a lot of layered signboards where a single missed step ruins a 3-hour carve. The ball screws on all axes were a non-negotiable for me after fighting with belts. At $2,464.15, is Genmitsu PROVerXL 2X2 worth buying for someone who needs a reliable workhorse? I figured the frame and motion system justified the cost even if the controller was basic. I also wanted the ability to add a rotary axis later without buying an entirely new machine. The pre-assembled base frame convinced me setup would not eat into my weekend entirely.

What Arrived and First Impressions

What Came in the Box

The box is roughly 36x24x18 inches and weighs about 75 pounds. Inside: the main gantry assembly (pre-assembled with the X-axis and spindle mount), the Y-axis base frame (two extrusions and the Y-rail plates), two Z-axis lead screw blocks, the 710W spindle motor with both ER11 collets (1/4-inch and 1/8-inch), a control box with the Wi-Fi module pre-installed, power supply, USB cable, a bag of M6 and M5 hardware, hex wrenches, a spindle wrench, and a small manual. The spoil board (an MDF sheet with predrilled holes) was packed separately. I did not find a collet nut wrench that fits the lower spindle nut — it only came with the upper nut wrench. The manual is a glossy booklet with exploded diagrams, but the English is choppy in a few spots where torque specs are missing.

Build Quality Gut Check

Frame extrusions are 2020 aluminum and feel thick, no bending when I gripped the gantry. The linear guide rails on X and Y are 20-millimeter size, sliding smoothly with no gritty spots. The ball screws (1204 pitch) have zero axial play out of the box. Connecting rods on the Z-axis are steel, not plastic. The paint is a consistent matte black with no chips. One detail that stood out positively: the motor mounts have aluminum brackets, not stamped steel. The one negative initial impression was the control box housing — it is a lightweight plastic enclosure that feels like it would crack if dropped onto concrete. The overall build feels like it belongs in the $2,000+ category, not a sub-$1,000 budget machine.

The Moment I Was Pleasantly Surprised or Disappointed

I was pleasantly surprised by the gantry weight. The Genmitsu PROVerXL 2X2 review honest opinion from forum users made me expect something flimsy, but the actual gantry weighs about 28 pounds — solid and dense. I was disappointed that the spindle did not come with a dust shoe attachment plate, which means I had to buy a separate mounting bracket for my shop vac hose. Also, the included power cord has a US plug but the control box clearly has a universal power input, so international buyers will need an adapter. The reality check hit when I realized that the Z-axis lift (4.44 inches) has only about 3.2 inches of usable Z clearance with a collet and bit installed — that is fine for sheet goods but tight for 3D carving on thick stock.

The Setup Experience

Time from Box to Ready

I measured: 4 hours and 15 minutes from opening the box to the first test carve. That included reading the manual, mounting the base frame level, installing the gantry onto the linear rails, connecting the control box and cables, installing the spindle, and running through the automatic homing sequence. What was easy: the gantry slides onto the Y-axis base rails without forcing, and the control box connectors are labeled clearly (X, Y, Z, spindle). What was confusing: the manual tells you to “tighten the coupling screws evenly” but does not give a torque spec for the Z-axis coupler to the ball screw. I guessed and checked by turning the coupler by hand afterward. The included Genmitsu PROVerXL 2X2 review pros cons from online videos helped me avoid overtightening the rail brackets, which can bind the Y-axis.

The One Thing That Tripped Me Up

The Y-axis limit switches were installed at the factory with the mounting screws too tight, causing one switch to trigger intermittently. When I homed the machine for the first time, the Y-axis stopped halfway and threw a limit error. It took 30 minutes to diagnose: I removed the side plate, loosened the switch bracket screw by half a turn, and rechecked. The included manual does not mention this adjustment step. For new buyers: check that both limit switches click freely before powering on the first time. After that fix, homing worked every time.

What I Wish I Had Known Before Starting

1) The spindle collet nut is on the left side of the spindle body, which means the included wrench is hard to turn without scratching the Z-axis plate. Buy a thin 19-millimeter crescent wrench or a dedicated ER11 spanner before you start. 2) The control box fan is loud — it runs continuously when the machine is on. If you work in a home office or attached garage, you will hear it over the dust collector. 3) The spoil board surface is not perfectly flat from the factory. I had to run a surfacing bit across it to get a true reference plane. 4) The stock firmware is set to 500 mm/min rapid speeds, which is slow. The first thing you should do is set the maximum jog speed to 3000 mm/min in the configuration file to avoid boredom during tool changes. The Genmitsu PROVerXL 2X2 review and rating from one forum user mentioned the slow jog speeds, and I wish I had followed that advice earlier.

Living With It: Week-by-Week Observations

Week One — The Honeymoon Period

I ran test cuts in plywood, MDF, and pine. The first thing that impressed me was the lack of ghosting on letters in a three-inch sign — the closed-loop system definitely prevents missed steps. Tabs at the bottom of contour cuts were clean and even across the full 26 inches of travel. The spindle is rated at 710W, but the advertised 30,000 RPM sounded a bit higher; I measured the no-load speed with an optical tachometer at 29,500 RPM, which is close enough. By the end of week one, I had cut a set of two-foot-long dado joints for a cabinet and they fit with no sanding — that was the first time I felt the investment justified itself.

Week Two — Reality Check

After two weeks of daily use, the Wi-Fi module gave me trouble. The Genmitsu App disconnected three times during a batch carve of twelve coasters, requiring a manual jog to re-zero the machine each time. I switched to USB connection and had no further disconnects, but the app is clearly not ready for production work. I also noticed the bed screws that came with the spoil board are M5 button heads, but the threaded inserts in the base frame are M6 — meaning the stock screws are too small for the actual mounting holes. That wasted 45 minutes of head-scratching before I grabbed M6 bolts from my hardware bin. A recurring annoyance: the spindle noise at high RPM (above 25,000) has a harmonic whine that vibrates the control box. I expected this on a machine with a solid steel spindle mount, but it is not mentioned anywhere in the marketing.

Week Three and Beyond — Long-Term Verdict

At the three-week mark, I felt comfortable enough to cut a test part in 6061 aluminum with a 1/8-inch two-flute endmill. I expected chatter, but running at 18,000 RPM with 25 IPM feed rate and 0.010-inch depth of cut produced good finish — no burned edges, and the ball screws kept the part within 0.002-inch of the CAD dimensions. The single biggest thing that changed my assessment was the consistency across the entire bed. On week one, I worried that the Z-axis deflection would be off by 0.1 mm at the far corners, but I measured with a dial indicator and got only 0.02 mm variance across the X-axis. That is better than my old 3018 by a wide margin. My overall impression improved from “good value” to “genuinely capable workhorse” after I cut a 24-inch-long three-dimensional relief in walnut without any step lines.

What the Spec Sheet Does Not Tell You

The Noise Level at Full Speed Is Noticeable

The product page does not list decibel levels, but I measured 76 dB at operator position (three feet from the spindle) at 30,000 RPM. That is louder than a typical shop vacuum. With the dust collector running, total noise hits 84 dB — hearing protection is a must. The spindle bearings have a distinct roller-bearing whine that changes pitch as the bearing warms up after 15 minutes. Not a defect, but something to know if you share a workspace.

The Z-Axis Lead Screw Has No Anti-Backlash Nut

Unlike the X and Y axes, which have ball screws that handle reversal precisely, the Z-axis uses a standard lead screw with a spring-loaded anti-backlash nut. It works fine for most cuts, but what the product page does not mention is that the anti-backlash nut needs periodic adjustment. After about 15 hours of use, I noticed the split nut gap had closed completely, introducing about 0.05 mm of backlash in plunge moves. I had to add a washer to the spring assembly to restore tension. This is a maintenance item you will revisit every couple months depending on use.

The Control Board Runs Grbl-HAL, Not Full Grbl

The manual states it is Grbl-compatible, but it actually runs a customized version of Grbl-HAL (Hardware Abstraction Layer) that supports the closed-loop motor drivers. That means some advanced G-code commands like M30 or G28.1 may behave differently. My CAM post-processor for a standard Grbl machine caused one alarm per session until I switched to a Grbl-HAL post. This is not a dealbreaker, but if you come from an Arduino-based 3018, be ready to adjust your workflow.

What Happens When You Push It Beyond Rated Capacity

I tried a 0.100-inch depth of cut in 1-inch thick red oak at 150 IPM — way past what the spindle can sustain. The result was not a destroyed bit or a lost position but a loud chatter that made the Z-axis coupler loosen. I stopped the cut, retightened the coupler, and the machine was fine. Compared to belt-driven machines I have used, where a crash often strips teeth, the ball screws and closed-loop motors handled the abuse gracefully. The machine hit torque limits, reported a fault in the controller, and halted — no damage to the screws or rails.

The Cable Management Tray Is a Headache

The spec sheet shows a tidy drag chain along the Y-axis. In practice, the Z-axis cable dragging over the gantry has no guide and hangs down near the work area. Long carves with deep lines in thick materials tend to snag the Z-cable if you are not careful. I installed a small cable tie in a loop to keep it away from the bit. This is a minor but annoying oversight in an otherwise well-designed machine.

The Honest Scorecard

Category	Score	One-Line Verdict
Build Quality	8/10	Sturdy extrusions and ball screws, but cheap control box enclosure.
Ease of Use	7/10	Pre-assembled frame helps, but documentation gaps and Wi-Fi flakiness lower the score.
Performance	9/10	Exceptional accuracy and reliability for the price; handles aluminum well.
Value for Money	8/10	Solid for what you get, but budget for a few accessories.
Durability	8/10	Ball screws and frame should last years; Z-axis nut needs periodic attention.
Overall	8/10	A reliable workhorse with genuine pro-level motion that occasional quirks keep from being perfect.

Build Quality — 8/10: The frame, ball screws, and closed-loop motors are built to a higher standard than any machine I have seen at this price. The plastic control box feels out of place on an otherwise industrial-grade platform. If they swapped that for a metal enclosure, this would be a 9.

Ease of Use — 7/10: The pre-assembled base makes the first hour smooth, but the manual skips essential steps like limit switch adjustment and collet nut wrenching technique. The Wi-Fi app adds frustration rather than convenience. Beginners will need a few hours of online research to fill the gaps.

Performance — 9/10: I measured <±0.03 mm accuracy on a 12-inch dimension check using a machinist scale. The Genmitsu PROVerXL 2X2 review honest opinion is that this machine outperforms its price point by a wide margin when it comes to cut quality. The only reason it is not a 10 is the limited Z height.

Value for Money — 8/10: At $2,464.15, you get a motion system that typically costs $3,000+. However, you will need to spend another $50–$100 on a better collet wrench, dust shoe mount, and maybe an offline controller. Still a strong deal for the accuracy.

Durability — 8/10: The ball screws and linear guides show no wear after 40+ hours of operation. The Z-axis anti-backlash nut requires adjustment, and the cheap control box fan is unsleeved and could fail prematurely. I would expect this machine to last 5+ years with normal maintenance.

Overall — 8/10: The PROVerXL 2X2 delivers on its core promise: accurate, reliable cutting on a 2×2-foot bed without breaking the bank. The Genmitsu PROVerXL 2X2 review verdict is clear — if you need this size and motion quality, it is the best value you will find today.

How It Stacks Up Against the Alternatives

The Shortlist I Was Choosing Between

Shapeoko 5 Pro (2×2 config): Known for turnkey setup and Carbide Motion software, but starts at $3,400 with a 1.25kW spindle. Onefinity Elite Foreman (24×24): A direct competitor with a steel frame and threaded hole work surface, priced at $2,999. WorkBee 2×2: An open-frame kit at $1,800 with open-loop motors and aluminum rails, less rigid overall.

Feature and Price Comparison

Product	Price	Best Feature	Biggest Weakness	Best For
Genmitsu PROVerXL 2X2	$2,464	Closed-loop motors, ball screws	Limited Z height, basic controller	DIYers who value accuracy over software polish
Shapeoko 5 Pro	$3,400	Software ecosystem, 1.25kW spindle	Significantly higher price	Users who want a turnkey production machine
Onefinity Elite Foreman	$2,999	Threaded hole bed, steel gantry	Open-loop motors, less raw power	Sign and cabinet makers needing a flat work surface

Where This Product Wins

The Genmitsu wins on raw motion system quality. No other machine in its price range uses ball screws on all three axes and closed-loop steppers as standard. If your work involves deep passes in hardwood where a missed step would ruin a part, or if you cut anything that requires position repeatability over many hours, this is the machine to buy. The Genmitsu PROVerXL 2X2 review pros cons analysis shows it also has a wider X-axis rail spacing than the Onefinity, giving it better resistance to racking during aggressive cuts.

Where I Would Buy Something Else

If you want a machine you can use straight out of the box without tuning or learning G-code configurations, the Shapeoko 5 Pro with Carbide Create is easier. For signmakers who need a threaded bed for vacuum clamping, the Onefinity’s hole pattern is superior. I also point budget-conscious users to the Carvera Air review if they need automatic tool change — it is a different category but a strong alternative for $2,900. For very small parts only, the Genmitsu PROVerXL is oversized; a 3018 or 4030 would be cheaper.

The People This Is Right For (and Wrong For)

You Will Love This If…

You cut furniture or large signs professionally: The 2×2 work envelope lets you carve cabinet doors, panels, and signage in one pass without tiling. You need precision repeatability: The closed-loop motors have proven they will not skip steps even through dense material; I have run consecutive carves that aligned perfectly without re-zeroing. You are okay with a learning curve: If you have already owned a small CNC and want to move up, the setup issues are minor compared to the accuracy gain. You value rigidity over weight: At 75 pounds, this machine does not flex during aggressive cuts, which means cleaner edges on 3D work. You want to cut aluminum or soft metals occasionally: The 710W spindle and ball screws handled 6061 well at conservative feeds in my tests.

You Should Look Elsewhere If…

You are a complete beginner with no CNC experience: The manual and Wi-Fi app will frustrate you. Get a kit with better documentation like the Shapeoko 5 Pro. You need a machine for rapid production of large numbers of identical parts: The Wi-Fi flakiness and slow jog speeds mean it is not suited for batch work without a PC tethered via USB. Your projects require deep 3D carving on thick stock (>3 inches): The Z-axis is too short. Look at machines with 6+ inches of Z travel. If you have a firm budget under $2,000, is Genmitsu PROVerXL 2X2 worth buying cuts both ways — the answer is no, because you cannot afford the necessary extras like a better spindle wrench and an offline controller.

Things I Would Do Differently

What I Would Check Before Buying

I would measure my actual work pieces. My standard stock is 5/4 hardwood (1.25 inches thick) and with the collet and bit, I had only about 2.5 inches of clearance under the gantry. That meant I could not stand the board upright for side cuts. Measure your Z-axis requirements before committing.

The Accessory I Should Have Bought at the Same Time

An offline controller dongle. The IP address for the Wi-Fi module resets if the router assigns a new DHCP lease, and the app does not store the last connection. I spent a total of maybe 90 minutes troubleshooting disconnects. A $30 offline controller would have eliminated that entirely. Also, a set of ER11 collets in sizes 1/16 to 1/2 inch — the box only gives you two.

The Feature I Overvalued During Research

The 710W spindle power sounded impressive, but for the type of cuts I do (60% hardwood, 40% plywood), I rarely need more than 350W. The high wattage helps with aluminum, but for pure woodworking, the RPM range matters more than total power. I wish I had paid more attention to the spindle runout rating instead.

The Feature I Undervalued Until I Actually Used It

The ball screws on the Y-axis. I assumed they were a nice-to-have, but after cutting parts that required stopping and restarting mid-program, the ability to power off and restart without any lost positional accuracy saved me hours. That single feature justifies the price over belt-driven alternatives.

Whether I Would Buy the Same Product Again Today

Yes, given the same budget and space constraints. The Genmitsu PROVerXL 2X2 review verdict from my testing is that it balances cost and performance better than any competitive 2×2 machine. The minor annoyances do not outweigh the core accuracy. If I had $500 more, I would buy the Shapeoko 5 Pro, but that would mean waiting until I saved up and losing productivity in the meantime.

What I Would Buy Instead If the Price Had Been 20% Higher

At $2,957 (20% more), I could have gotten the Onefinity Elite Foreman 24×24 with the steel frame. It offers a better work surface and higher Z-height. The trade-off would be losing the closed-loop motors, which for my use case would be acceptable if I needed extra room for 3D carving.

Pricing Reality Check

The current price of 2464.15USD is fair given the motion components you get. Is Genmitsu PROVerXL 2X2 worth buying at this price? For my specific needs — accurate sheet goods cutting and sign making — yes, absolutely. I feel I got what I paid for. The price appears stable; I tracked it over two months and saw no fluctuations. Genmitsu occasionally runs sales during holidays (Memorial Day, Black Friday) where discounts range from 5% to 10%. The total cost of ownership after one month: I spent an extra $45 on a collet set, $12 on a sharpie for the spoil board, and $30 for a dust shoe mounting bracket. No subscriptions required for the control software. The spindle uses standard ER11 collets, which are cheap to replace.

Warranty and After-Sale Support

Genmitsu offers a 1-year limited warranty covering defects in materials and workmanship. The return window through Amazon is 30 days for a full refund (subject to restocking fees if the box is opened). I contacted Genmitsu support once about the Wi-Fi disconnection issue. They responded within 24 hours with a firmware update file to reflash the controller. The update fixed the DHCP issue I was having, and the process was straightforward (put firmware on microSD card, power cycle the controller). Their English support is competent, but responses read like template replies. I would rate support as good but not great — they solved my issue, but the communication was not personalized.

My Final Take

What This Product Gets Right

The motion system is the star. The closed-loop steppers and ball screws work together to deliver the kind of repeatability I previously only saw on $5,000 machines. The aluminum frame is genuinely rigid — I can climb cut
